Product Description

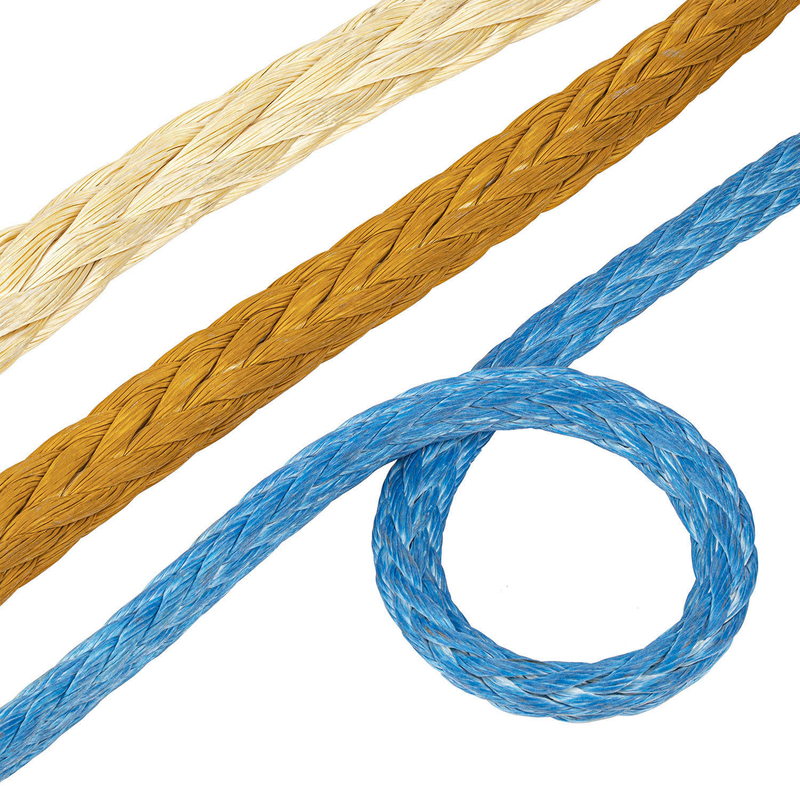

1.Material: UHMWPE
2.Structure: 12 strand
3.Advantages: Easy operation, low enlongation, high strength, excellent anti-ultraviolet and antioxidant properties, excellent anti-bending strength and anti-fatigue properties.
4.Application: Fishing, Mooring , Marine, National Defense, Ocean-Going Ships And Oil Platforms, Port Towing.
12-Strand Rope Parameter Table
| mm Dia | Circ | Wight | Breaking Strength | |||
| mm | lnch | lnch | KGS/100M | LBS/100FT | Ton | KN |
| 6 | 1/4 | 3/4 | 2.3 | 1.5 | 3.4 | 33 |
| 8 | 5/16 | 1 | 4 | 2.7 | 6 | 58.7 |
| 10 | 13/32 | 1-1/4 | 6.1 | 4.1 | 9.4 | 92 |
| 12 | 15/32 | 1-1/2 | 8.7 | 5.8 | 13.5 | 132 |
| 14 | 9/16 | 1-3/4 | 11.7 | 7.8 | 18.4 | 180 |
| 16 | 5/8 | 2 | 15.1 | 10.1 | 24 | 235 |
| 18 | 23/32 | 2-1/4 | 19 | 12.7 | 28.9 | 283 |
| 20 | 13/16 | 2-1/2 | 23.2 | 15.6 | 34.7 | 340 |
| 22 | 7/8 | 2-3/4 | 28.1 | 18.8 | 40.8 | 400 |
| 24 | 15/16 | 3 | 33.1 | 22.2 | 48 | 470 |
| 26 | 1-1/32 | 3-1/4 | 38.4 | 25.8 | 55 | 540 |
| 28 | 1-1/8 | 3-1/2 | 44.5 | 29.8 | 62 | 610 |
| 30 | 1-3/16 | 3-3/4 | 50.6 | 33.9 | 70.4 | 690 |
| 32 | 1-1/4 | 4 | 57.5 | 38.6 | 79.6 | 780 |
| 34 | 1-11/32 | 4-1/4 | 64.8 | 43.5 | 87.7 | 860 |
| 36 | 1-7/16 | 4-1/2 | 72 | 48.3 | 96 | 940 |
| 38 | 1-1/2 | 4-3/4 | 79.8 | 53.5 | 106 | 1040 |
| 40 | 1-19/32 | 5 | 88.1 | 59.1 | 115.3 | 1130 |
| 44 | 1-3/4 | 5-1/2 | 106 | 71.1 | 133.7 | 1310 |
About us
1960S
The company was founded, and the products were mainly hand-woven rope.
1980S
The purchase of a rope machine, began in the age of mechanization.
2000S
The company has passed ISO9001 system certification, CCS,LR and other classification society's factory approval and product inspection.
2005S
The company buys 30000m land, builds standardized workshop and office building.
2010S
The company has participated in the drafting of several national standards, such as ultra-high molecular polyethylene, polyester and acrylic, etc.
2012S
Cooperation and development agreement with the east China sea fisheries research institute of China fishery research institute.
2015
2017
The annual output of the company is 6000 tons and the annual output value is 8000W, and the annual output is increasing.
Certifications

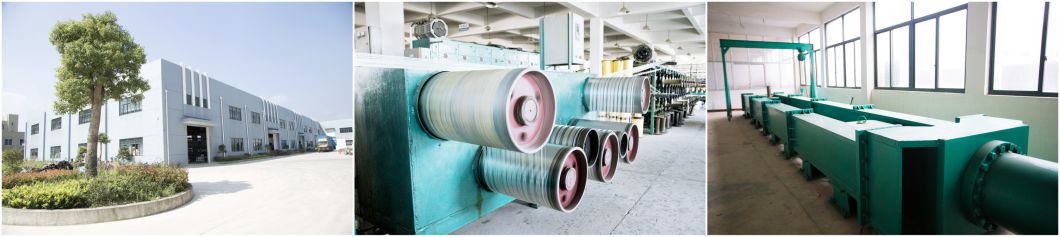

Factory
