Mooring Rope Nylon Polyamide Rope

Quantity:
  • Ningbo, China
  • PP Bag or Wooden Reel
  • L/C, T/T, Western Union, Paypal
  • HL-PA001
  • 220m/300m or Other
  • 4mm/8mm/10mm and Other
  • Dinglang
  • 4mm-120mm
  • Zhejiang, China
  • 560749000
  • Outdoor Gear, Packaging, Agriculture, Shipping, Security, Decoration, Garment, Chinese Knot
  • ISO9001: 2000, CE, GS, LR, DNV, GL, ABS, CCS
  • Twist Rope
  • Nylon
  • 3/4/8/12
  • Any Color

Product Description

Products

Polyamide Multifilament(Nylon)Rope

The product is made of 100% high strength nylon fiber and through two twisting, then the processing braided.
The Rope is more powerful than ordinary Rope, with high elongation, good impact resistance, abrasion resistance, UV and chemical corrosion, long term use and long service life.
But in a wet condition, the strength and elongation will vary, and the intensity will drop by about 10%.
Application: ship assembly, ocean-going transportation, oil transport ship, defense military workers and port operations.

Density: 1.14 g/cm3(Not floating)
Melting point: 220 C
Elongation at break: 25%~30%
Anti-UV: Excellent
Resistance to wear: Very Good
Chemical resistance: Excellent

8-strand Rope Parameter Table
Dia Circ Weight Breaking Strength
mm Inch Inch KGS/100M LBS/100FT Ton kN
24 15/16 3 35.5 23.9 13.4 131.4
28 1-1/8 3-1/2 48.5 32.6 17.8 174.6
32 1-1/4 4 63.0 42.4 22.5 220.7
36 1-7/16 4-1/2 80.0 53.8 28.2 276.6
40 1-5/8 5 100.0 67.2 34.0 333.5
44 1-3/4 5-1/2 121.0 81.4 40.5 397.3
48 1-15/16 6 143.0 96.1 47.5 466.0
52 2-1/8 6-1/2 168.0 112.9 55.0 539.5
56 2-1/4 7 193.0 129.7 62.5 613.1
60 2-3/8 7-1/2 221.0 148.5 70.5 691.6
64 2-1/2 8 252.0 169.4 80.0 784.8
68 2-11/16 8-1/2 286.0 192.2 90.0 882.9
72 2-7/8 9 319.0 214.4 100.0 981.0
80 3-1/4 10 394.0 264.8 123.0 1206.6
88 3-1/2 11 478.0 321.2 145.0 1422.5
90 3-3/4 11-1/4 499.0 335.3 151.0 1481.3
96 3-13/16 12 569.0 382.4 170.0 1667.7
100 3-15/16 12-1/2 616.0 414.0 184.0 1805.0
104 4-1/8 13 666.0 447.5 200.0 1961.9
112 4-7/16 14 772.0 518.8 210.0 2060.0
120 4-3/4 15 887.0 596.1 255.0 2501.5


12-strand Rope Parameter Table
Dia Circ Weight Breaking Strength
mm Inch Inch KGS/100M LBS/100FT Ton kN
24 15/16 3 35.5 23.9 13.4 131.4
28 1-1/8 3-1/2 48.5 32.6 17.8 174.6
32 1-1/4 4 63.0 42.4 22.5 220.7
36 1-7/16 4-1/2 83.0 53.8 29.8 292.3
40 1-5/8 5 100.0 67.2 35.0 343.3
44 1-3/4 5-1/2 121.0 81.4 42.3 414.9
45 1-25/32 5-5/8 124.8 83.9 44.1 432.6
48 1-15/16 6 143.0 96.1 49.5 485.6
50 2 6-1/4 153.5 103.2 54.1 530.7
52 2-1/8 6-1/2 168.0 112.9 58.7 575.8
55 2-5/32 6-7/8 186.2 125.2 66.9 656.0
56 2-1/4 7 201.0 129.7 69.6 682.8
60 2-3/8 7-1/2 226.0 148.5 77.9 764.2
64 2-1/2 8 252.0 169.4 86.6 849.5
65 2-9/16 8-1/8 260.0 174.7 89.5 877.5
68 2-11/16 8-1/2 286.0 192.2 98.0 961.3
70 2-3/4 8-3/4 302.0 203.0 105.0 1030.0
72 2-7/8 9 330.0 214.4 112.0 1098.7
75 3 9-3/8 346.0 232.5 119.9 1176.0
80 3-1/4 10 403.0 264.8 133.0 1304.7
85 3-3/8 10-5/8 445.0 299.0 148.0 1451.9
88 3-1/2 11 478.0 321.2 157.0 1540.1
90 3-9/16 11-1/4 499.0 335.3 165.5 1623.6
95 3-3/4 11-7/8 556.0 373.6 186.8 1832.0
96 3-13/16 12 569.0 382.4 191.0 1873.7
100 3-15/16 12-1/2 616.0 414.0 200.5 1966.9
104 4-1/8 13 666.0 447.5 210.0 2060.0
112 4-7/16 14 772.0 518.8 228.0 2236.6
120 4-3/4 15 887.0 596.1 270.0 2648.6
Mooring Rope Nylon Polyamide Rope

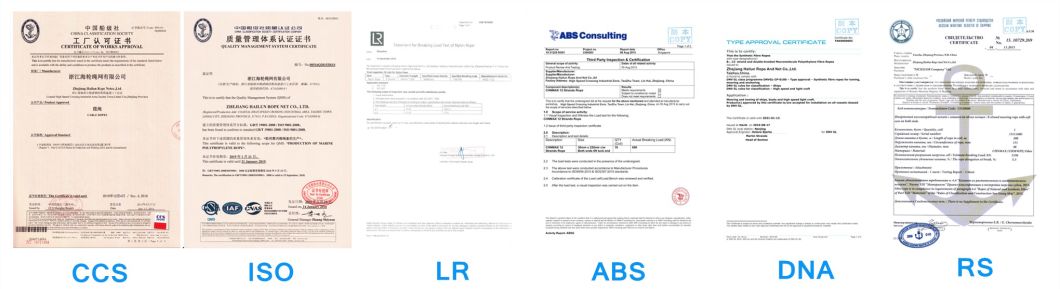

Certificates

Mooring Rope Nylon Polyamide Rope

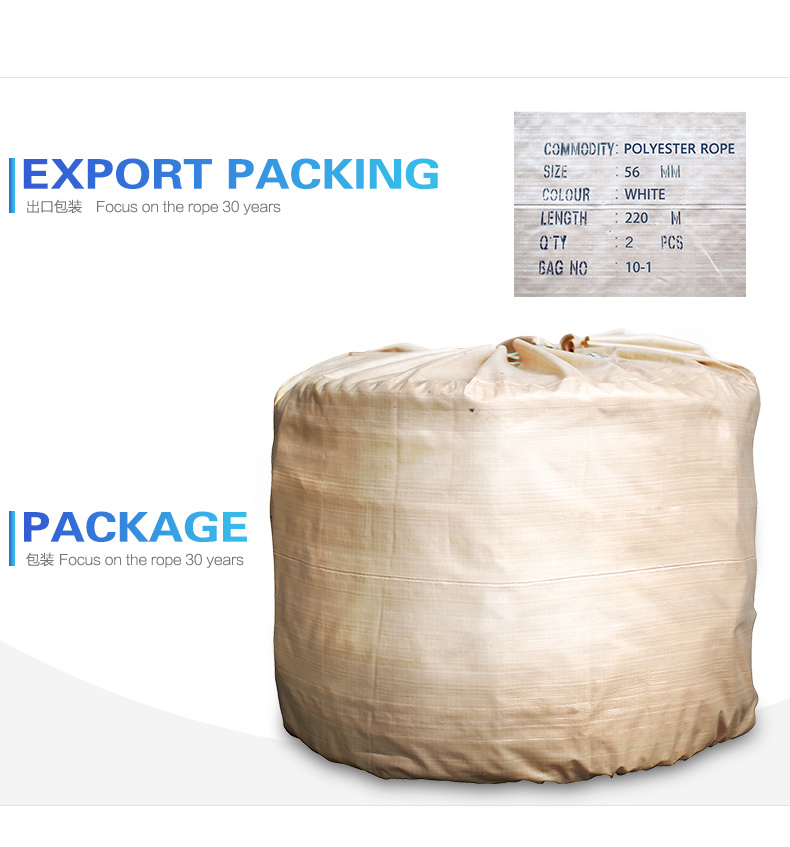

Package
Mooring Rope Nylon Polyamide Rope

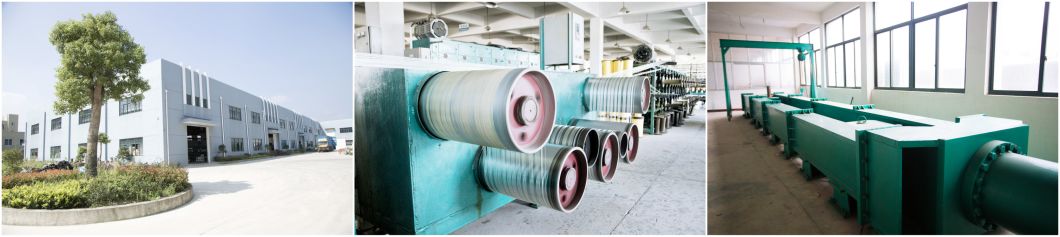

Factory

Mooring Rope Nylon Polyamide Rope
