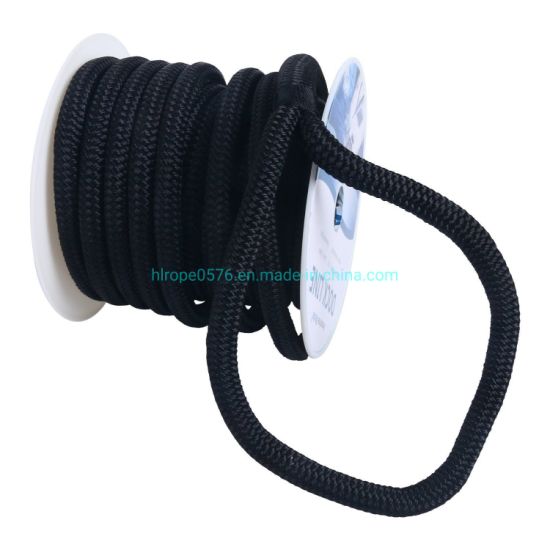

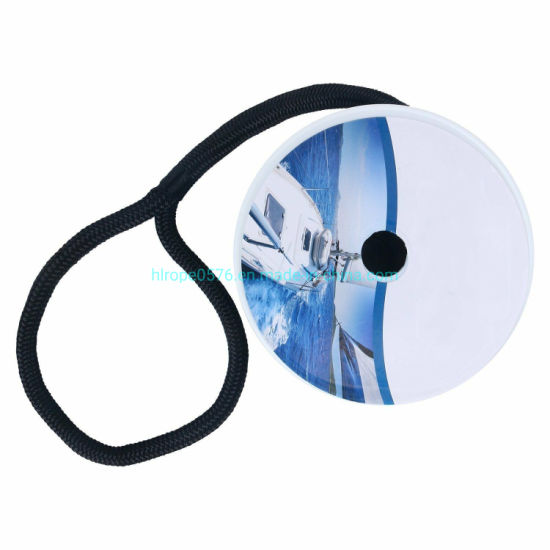

Black 5/8" 50 FT Double Braid Nylon Dock Line Mooring Rope Double Braided

Quantity:



Inquire Add to Basket

Port:
Ningbo, China
Production Capacity:
8000 Tons
Payment Terms:
L/C, T/T, Paypal
Model NO.:
HL11
Colour:
Customized
Strands:
3/4/8/12/16/32
Application:
Fishing
Trademark:
DingLang
Transport Package:
PP Bag
Specification:
Polyester
Origin:
China Mainland
HS Code:
5607490000
Usage:
Packaging, Agriculture, Shipping, Security, Chinese Knot
Certification:
ISO9001: 2000, CE, GS, LR, DNV, GL, ABS, CCS, ISO9001:2008
Type:
Twist Rope
Material:
Polyester
Diameter:
4-120mm
Length:
220 Meters

Product Description

Product Description

Polyester

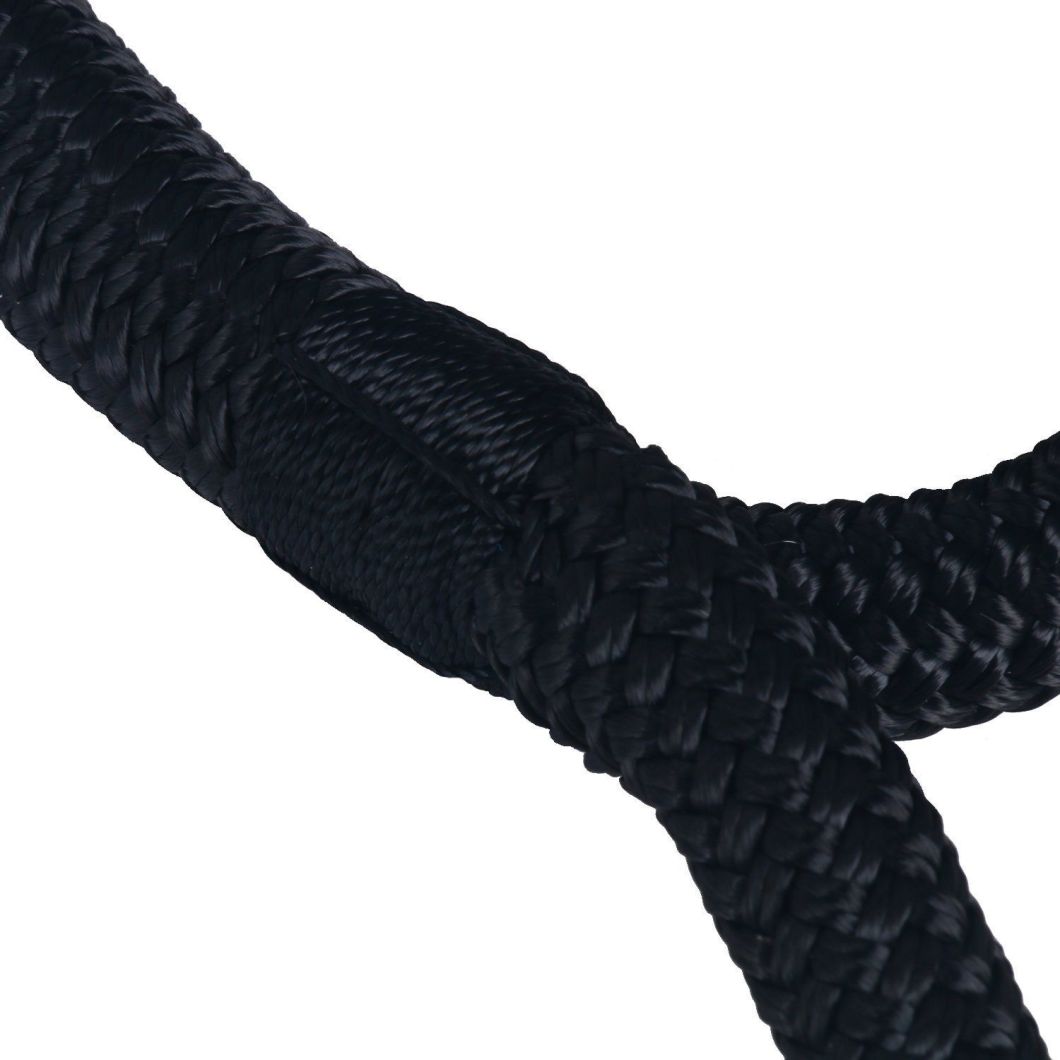

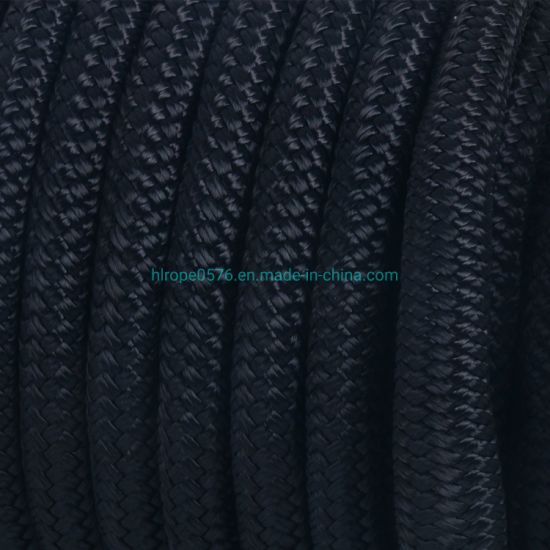

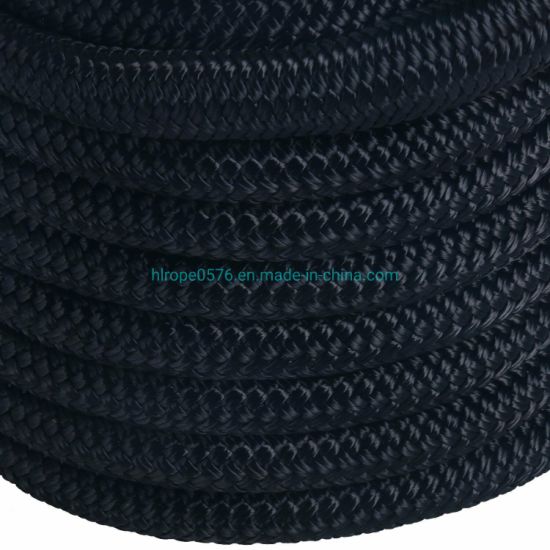

Black 5/8

This product is made of 100% high - strength polyester fiber (polyester) fiber,and through two twisting, then the processing braided.
The rope is the most wear-resistant, weather-resistant, wear-resistant, anti-uv and chemical corrosion of all synthetic fibre ropes.
At the same time, the fracture strength and elongation are consistent with the standard state.
Suitable for high load continuous friction.
Application: cruise ship, mooring, towline, chemical boat, etc.

Details introduction

Density: 1.38 g/cm³(Not floating)
Melting point: 265 ° C
Elongation at break: 20 ~ 25%
Anti-UV: Excellent
Resistance to wear:Excellent
Chemical resistance:Very Good

8-strand Rope Parameter Table

mm Dia		Circ	Weight		Breaking Strength
mm	Inch	Inch	KGS/100M	LBS/100FT	Ton	kN
24	15/16	3	43.7	29.4	12.2	119.7
28	1-1/8	3-1/2	59.4	40.0	16.2	158.9
32	1-1/4	4	77.8	52.3	21.2	208.0
36	1-7/16	4-1/2	98.2	66.0	26.5	260.0
40	1-5/8	5	121.0	81.3	32.5	318.8
44	1-3/4	5-1/2	147.0	98.8	38.8	380.6
48	1-15/16	6	175.0	117.6	46.1	452.2
52	2-1/8	6-1/2	205.0	137.8	54.1	529.7
56	2-1/4	7	238.0	160.0	62.9	616.0
60	2-3/8	7-1/2	273.0	183.5	73.3	718.1
64	2-1/2	8	311.0	209.0	83.1	814.2
68	2-11/16	8-1/2	351.0	236.0	93.1	912.3
72	2-7/8	9	393.0	264.1	103.1	1010.4
80	3-1/4	10	485.0	327.0	127.1	1245.8
88	3-1/2	11	587.0	395.0	152.2	1491.1
90	3-9/16	11-1/4	614.0	413.0	158.2	1549.9
95	3-3/4	11-7/8	685.0	461.0	176.2	1726.5
96	3-3/4	12	699.0	470.0	181.2	1775.6
100	3-15/16	12-1/2	758.0	510.0	196.2	1922.7
104	4-1/8	13	820.0	551.1	209.2	2050.2
112	4-7/16	14	950.0	638.4	243.2	2383.8
120	4-3/4	15	1090.0	732.5	278.3	2727.1

12-strand Rope Parameter Table

mm Dia		Circ	Weight		Breaking Strength
mm	Inch	Inch	KGS/100M	LBS/100FT	Ton	kN
24	15/16	3	43.7	29.4	12.2	120.0
28	1-1/8	3-1/2	59.4	40.0	16.2	159.0
32	1-1/4	4	77.8	52.3	21.2	208.0
36	1-7/16	4-1/2	98.2	66.0	27.9	273.7
40	1-5/8	5	121.0	81.3	34.2	335.3
44	1-3/4	5-1/2	142.0	98.8	39.8	390.4
45	1-25/32	5-5/8	153.8	103.4	41.75	410.0
48	1-15/16	6	172.0	117.6	47.6	466.9
50	2	6-1/4	189.5	127.4	51.85	508.0
52	2-1/8	6-1/2	205.0	137.8	56.1	549.3
55	2-5/32	6-7/8	230.0	154.6	62.48	612.0
56	2-1/4	7	235.0	158.0	64.6	632.7
60	2-3/8	7-1/2	271.0	182.1	76.1	745.5
64	2-1/2	8	307.0	206.5	84.1	824.0
65	2-9/16	8-1/8	321.0	215.7	86.73	850.0
68	2-11/16	8-1/2	351.0	235.9	94.6	927.0
70	2-3/4	8-3/4	372.0	250.0	101.85	998.0
72	2-7/8	9	394.0	265.0	109.1	1069.3
75	3	9-3/8	427.0	287.0	118.1	1158.0
80	3-1/4	10	485.0	326.0	133.1	1304.7
85	3-3/8	10-5/8	548.0	368.3	149.42	1464.0
88	3-1/2	11	587.0	394.5	159.2	1559.7
90	3-9/16	11-1/4	615.0	513.4	167.2	1638.0
95	3-3/4	11-7/8	685.0	460.3	187.2	1834.0
96	3-3/4	12	700.0	470.4	191.2	1873.7
100	3-15/16	12-1/2	759.0	510.1	206.2	2021.0
104	4-1/8	13	821.0	551.7	221.2	2167.9
112	4-7/16	14	953.0	640.4	256.3	2511.3
120	4-3/4	15	1095.0	735.8	293.3	2874.2

Certificates

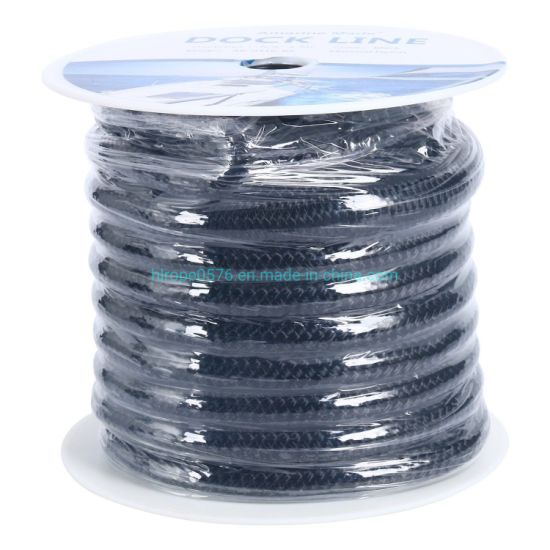

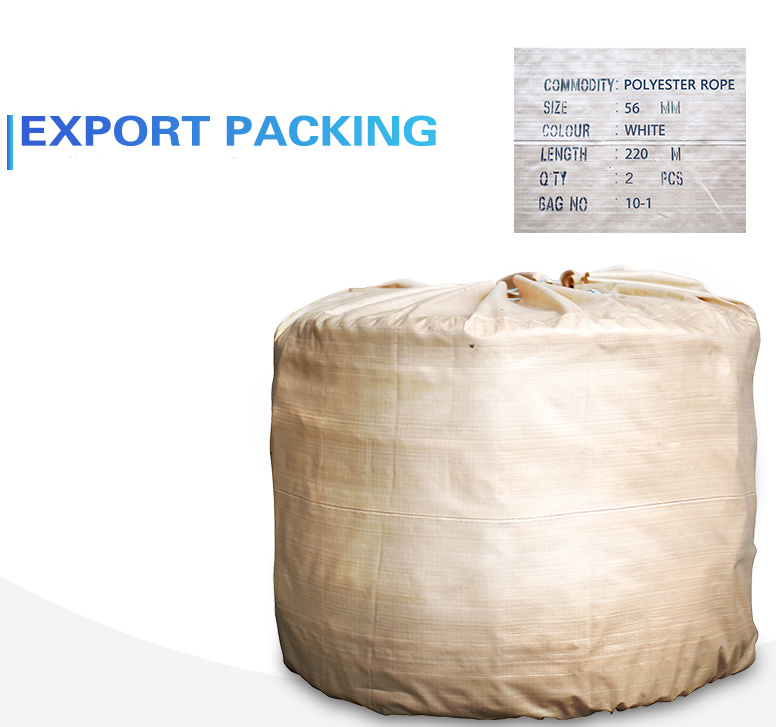

Packing
Black 5/8

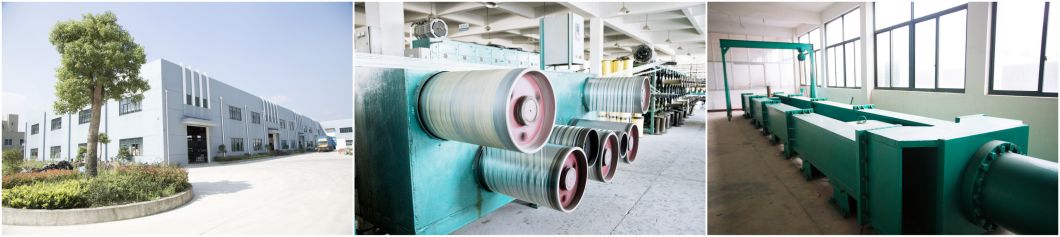

Workshop Picture

Polysteel Fishing Line Mooring Line
