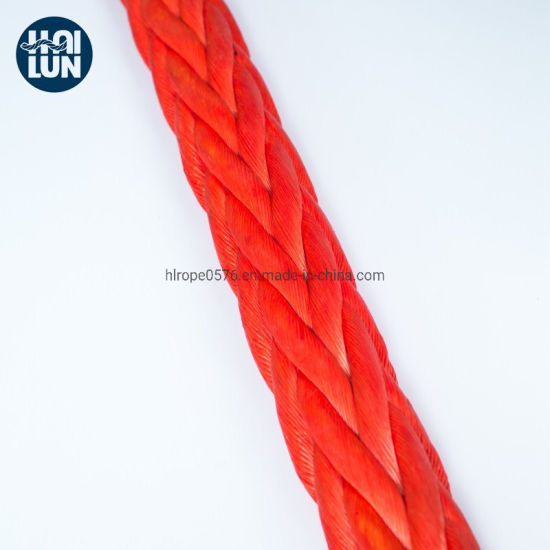

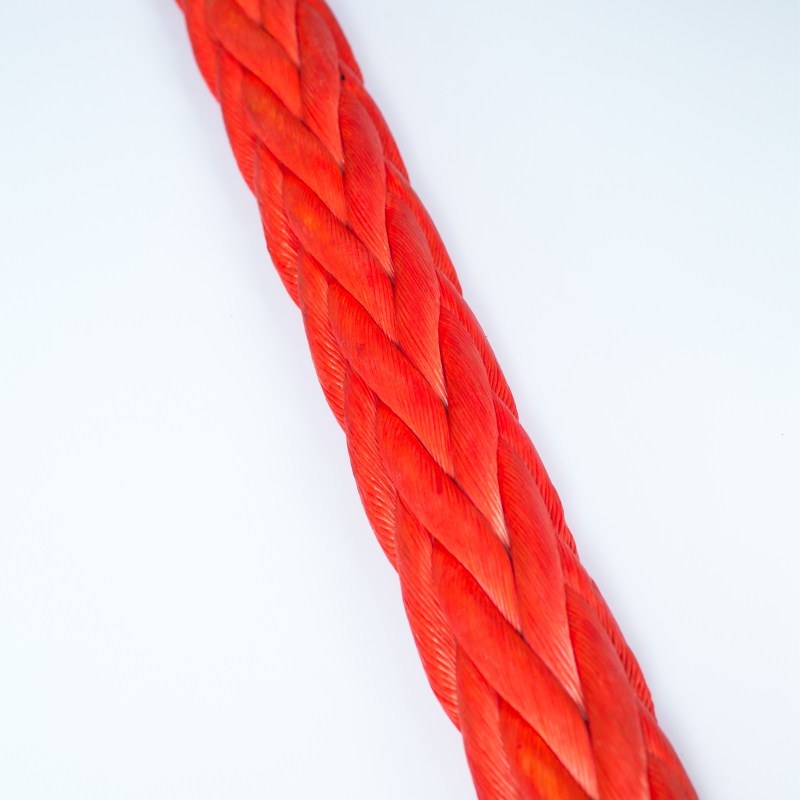

12 Strand UHMWPE/Hmpe Hmwpe Rope Winch Rope Marine Rope

Quantity:



Inquire Add to Basket

Port:
Ningbo, China
Production Capacity:
6500ton/Year
Payment Terms:
L/C, T/T, Paypal
Density:
0.97 g/cm3 (Floating in The Water)
The Elongation at Break:
3 ~3.5%
Anti-UV:
Very Good
Resistance to Wear:
Good
Chemical Resistance:
Very Good
Water Absorption:
No
Transport Package:
Packing in Coil with PP Bags
Specification:
3-120mm
Origin:
China
HS Code:
5607490000
Usage:
Agriculture, Shipping, Offshore
Certification:
ISO9001: 2000, CE, GS, LR, DNV, GL, ABS, CCS
Type:
Twist Rope
Material:
UHMWPE
Strand:
12 Strand
Color:
Customized

Product Description

Product Description

1.Material: UHMWPE.

2.Structure: 12 strand

3.Advantages: Easy operation, low enlongation, high strength, excellent anti-ultraviolet and antioxidant properties, excellent anti-bending strength and anti-fatigue properties.

4.Application: Fishing, Mooring , Marine, National Defense, Ocean-Going Ships And Oil Platforms, Port Towing.

12-Strand Rope Parameter Table

mm Dia		Circ	Wight		Breaking Strength
mm	lnch	lnch	KGS/100M	LBS/100FT	Ton	KN
6	1/4	3/4	2.3	1.5	3.4	33
8	5/16	1	4	2.7	6	58.7
10	13/32	1-1/4	6.1	4.1	9.4	92
12	15/32	1-1/2	8.7	5.8	13.5	132
14	9/16	1-3/4	11.7	7.8	18.4	180
16	5/8	2	15.1	10.1	24	235
18	23/32	2-1/4	19	12.7	28.9	283
20	13/16	2-1/2	23.2	15.6	34.7	340
22	7/8	2-3/4	28.1	18.8	40.8	400
24	15/16	3	33.1	22.2	48	470
26	1-1/32	3-1/4	38.4	25.8	55	540
28	1-1/8	3-1/2	44.5	29.8	62	610
30	1-3/16	3-3/4	50.6	33.9	70.4	690
32	1-1/4	4	57.5	38.6	79.6	780
34	1-11/32	4-1/4	64.8	43.5	87.7	860
36	1-7/16	4-1/2	72	48.3	96	940
38	1-1/2	4-3/4	79.8	53.5	106	1040
40	1-19/32	5	88.1	59.1	115.3	1130
44	1-3/4	5-1/2	106	71.1	133.7	1310

About us

1960S
The company was founded, and the products were mainly hand-woven rope.
1980S
The purchase of a rope machine, began in the age of mechanization.
2000S
The company has passed ISO9001 system certification, CCS,LR and other classification society's factory approval and product inspection.
2005S
The company buys 30000m land, builds standardized workshop and office building.
2010S
The company has participated in the drafting of several national standards, such as ultra-high molecular polyethylene, polyester and acrylic, etc.
2012S
Cooperation and development agreement with the east China sea fisheries research institute of China fishery research institute.
2017
The annual output of the company is 6000 tons and the annual output value is 8000W, and the annual output is increasing.

Certifications

12 Strand UHMWPE/Hmpe Hmwpe Rope Winch Rope Marine Rope

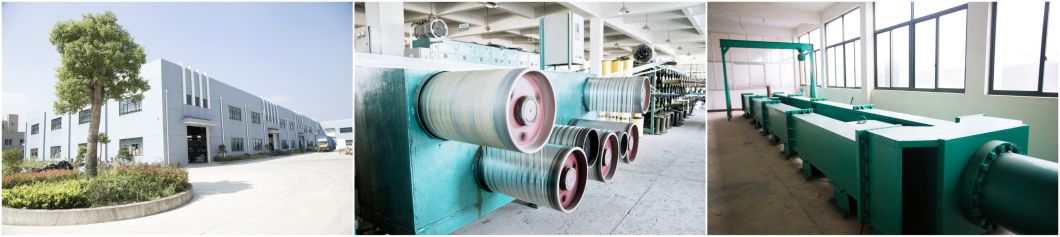

Factory

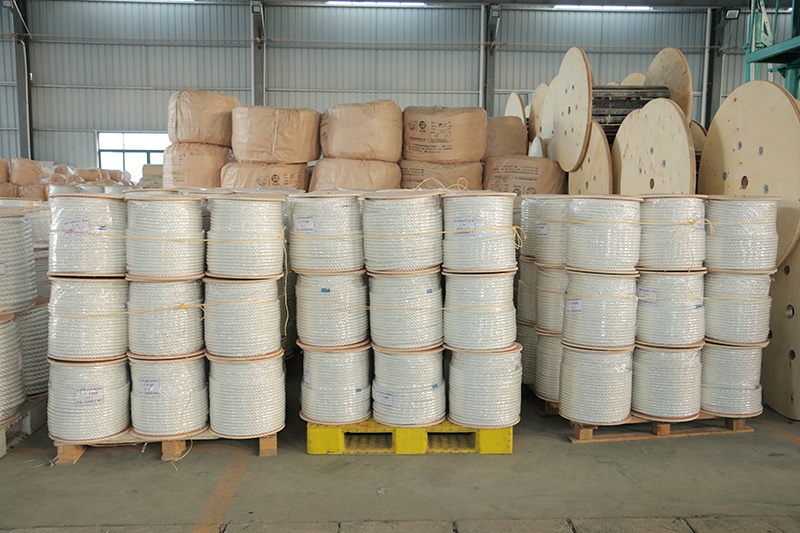

Packaging

Marine Rope Fishing Rope UHMWPE Rope
