10mm White Nylon Rope (220m Coil)

Quantity:



Inquire Add to Basket

Port:
Ningbo, China
Production Capacity:
8000 Tons
Payment Terms:
L/C, T/T, Paypal
Model NO.:
HL11
Length:
220 Meters
Diameter:
1-120mm
Trademark:
HaiLun
Transport Package:
PP Bags
Specification:
polyamide
Origin:
China Mainland
HS Code:
5607490000
Usage:
Agriculture, Shipping, Chinese Knot
Certification:
ISO9001: 2000, LR, DNV, GL, ABS, CCS
Type:
Braided Rope
Material:
Nylon
Strands:
24/28/32/36 etc
Colour:
White or Customized

Product Description

Product Description

Polyamide Multifilament(Nylon)Rope

10mm White Nylon Rope (220m Coil)

The product is made of 100% high strength nylon fiber and through two twisting, then the processing braided.
The Rope is more powerful than ordinary Rope, with high elongation, good impact resistance, abrasion resistance, UV and chemical corrosion, long term use and long service life.
But in a wet condition, the strength and elongation will vary, and the intensity will drop by about 10%.
Application: ship assembly, ocean-going transportation, oil transport ship, defense military workers and port operations.

Details introduction

Density: 1.14 g/cm³(Not floating)
Melting point: 220 C
Elongation at break: 25%~30%
Anti-UV: Excellent
Resistance to wear: Very Good
Chemical resistance: Excellent

8-strand Rope Parameter Table

mm Dia		Circ	Weight		Breaking Strength
mm	Inch	Inch	KGS/100M	LBS/100FT	Ton	kN
24	15/16	3	35.5	23.9	13.4	131.4
28	1-1/8	3-1/2	48.5	32.6	17.8	174.6
32	1-1/4	4	63.0	42.4	22.5	220.7
36	1-7/16	4-1/2	80.0	53.8	28.2	276.6
40	1-5/8	5	100.0	67.2	34.0	333.5
44	1-3/4	5-1/2	121.0	81.4	40.5	397.3
48	1-15/16	6	143.0	96.1	47.5	466.0
52	2-1/8	6-1/2	168.0	112.9	55.0	539.5
56	2-1/4	7	193.0	129.7	62.5	613.1
60	2-3/8	7-1/2	221.0	148.5	70.5	691.6
64	2-1/2	8	252.0	169.4	80.0	784.8
68	2-11/16	8-1/2	286.0	192.2	90.0	882.9
72	2-7/8	9	319.0	214.4	100.0	981.0
80	3-1/4	10	394.0	264.8	123.0	1206.6
88	3-1/2	11	478.0	321.2	145.0	1422.5
90	3-3/4	11-1/4	499.0	335.3	151.0	1481.3
96	3-13/16	12	569.0	382.4	170.0	1667.7
100	3-15/16	12-1/2	616.0	414.0	184.0	1805.0
104	4-1/8	13	666.0	447.5	200.0	1961.9
112	4-7/16	14	772.0	518.8	210.0	2060.0
120	4-3/4	15	887.0	596.1	255.0	2501.5

12-strand Rope Parameter Table

mm Dia		Circ	Weight		Breaking Strength
mm	Inch	Inch	KGS/100M	LBS/100FT	Ton	kN
24	15/16	3	35.5	23.9	13.4	131.4
28	1-1/8	3-1/2	48.5	32.6	17.8	174.6
32	1-1/4	4	63.0	42.4	22.5	220.7
36	1-7/16	4-1/2	83.0	53.8	29.8	292.3
40	1-5/8	5	100.0	67.2	35.0	343.3
44	1-3/4	5-1/2	121.0	81.4	42.3	414.9
45	1-25/32	5-5/8	124.8	83.9	44.1	432.6
48	1-15/16	6	143.0	96.1	49.5	485.6
50	2	6-1/4	153.5	103.2	54.1	530.7
52	2-1/8	6-1/2	168.0	112.9	58.7	575.8
55	2-5/32	6-7/8	186.2	125.2	66.9	656.0
56	2-1/4	7	201.0	129.7	69.6	682.8
60	2-3/8	7-1/2	226.0	148.5	77.9	764.2
64	2-1/2	8	252.0	169.4	86.6	849.5
65	2-9/16	8-1/8	260.0	174.7	89.5	877.5
68	2-11/16	8-1/2	286.0	192.2	98.0	961.3
70	2-3/4	8-3/4	302.0	203.0	105.0	1030.0
72	2-7/8	9	330.0	214.4	112.0	1098.7
75	3	9-3/8	346.0	232.5	119.9	1176.0
80	3-1/4	10	403.0	264.8	133.0	1304.7
85	3-3/8	10-5/8	445.0	299.0	148.0	1451.9
88	3-1/2	11	478.0	321.2	157.0	1540.1
90	3-9/16	11-1/4	499.0	335.3	165.5	1623.6
95	3-3/4	11-7/8	556.0	373.6	186.8	1832.0
96	3-13/16	12	569.0	382.4	191.0	1873.7
100	3-15/16	12-1/2	616.0	414.0	200.5	1966.9
104	4-1/8	13	666.0	447.5	210.0	2060.0
112	4-7/16	14	772.0	518.8	228.0	2236.6
120	4-3/4	15	887.0	596.1	270.0	2648.6

Company Introduction

1960S
The company was founded, and the products were mainly hand-woven rope.
1980S
The purchase of a rope machine, began in the age of mechanization.
2000S
The company has passed ISO9001 system certification, CCS,LR and other classification society's factory approval and product inspection.
2005S
The company buys 30000 m²land, builds standardized workshop and office building.
2010S
The company has participated in the drafting of several national standards, such as ultra-high molecular polyethylene, polyester and acrylic, etc.
2012S
Cooperation and development agreement with the east China sea fisheries research institute of China fishery research institute.
2017S
The annual output of the company is 6000 tons and the annual output value is 8000W, and the annual output is increasing.

Certificates

Packing

10mm White Nylon Rope (220m Coil)

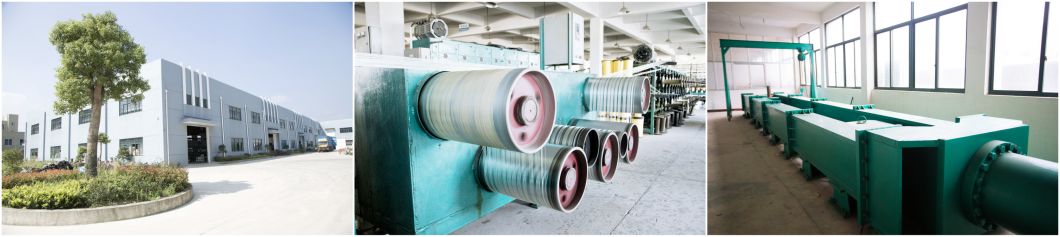

Workshop picture

Float Twist Customized Meters

10mm White Nylon Rope (220m Coil)
